FD1 Drone Detection Equipment

Description

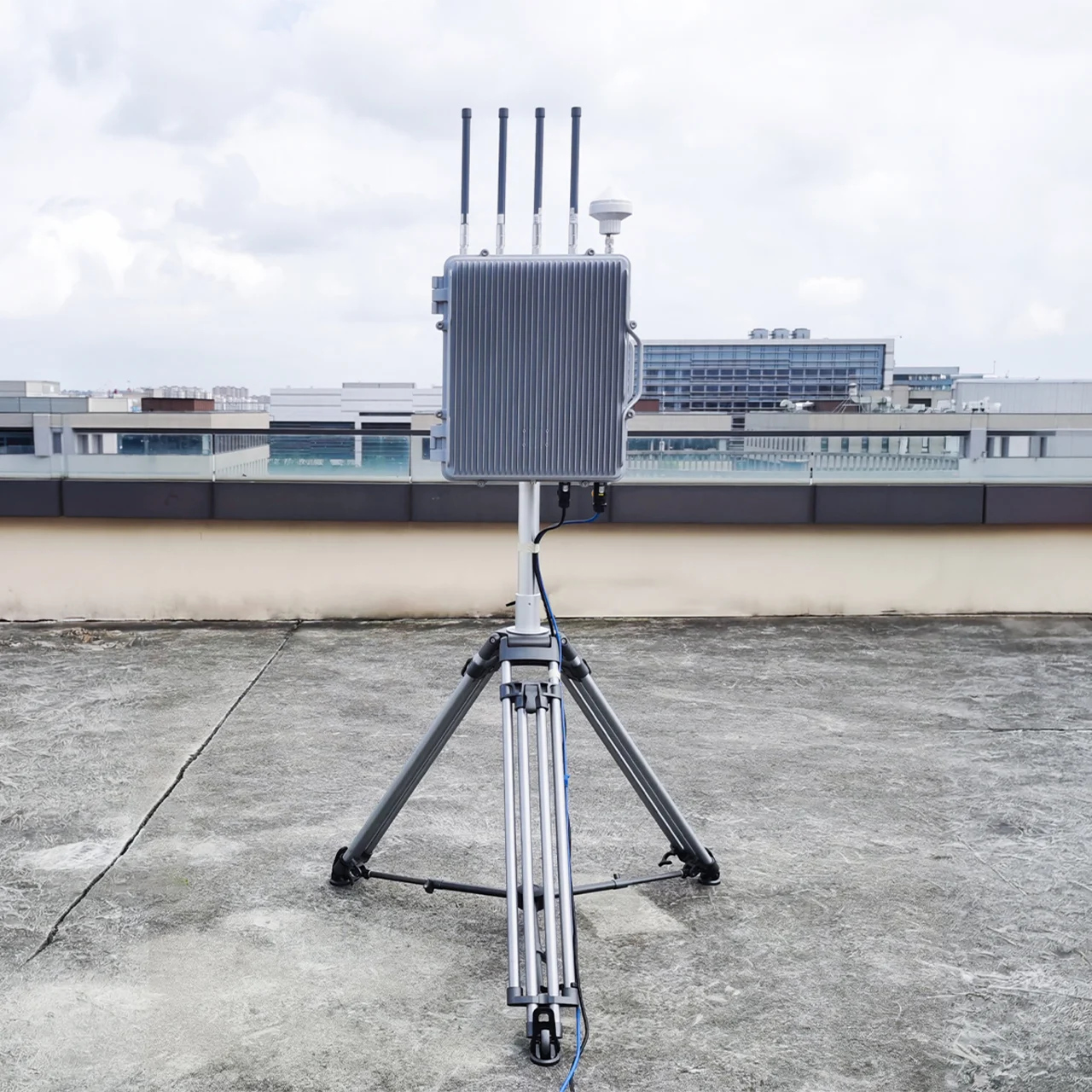

FD1 Drone Detection Equipment is a stationary RF-based drone detection and location system utilizing radio spectrum big data analytics to identify drone model, serial number, drone coordinates (longitude, latitude, altitude), and pilot coordinates. With 1–10 km detection range, ~15 concurrent drone tracking, ~10 m location accuracy, IP65 protection, and -20°C to 65°C operation — the FD1 works independently offline or networks with multiple units for extended-area coverage, and interconnects with neutralization equipment such as radio jammers and GNSS spoofers.

Comprehensive Drone Detection & Identification

• Drone Model Identification – DJI, Autel, homemade, FPV, and WiFi drone models
• Drone S/N Code Identification – Unique serial number extraction for forensic tracking (certain protocols)
• Drone Coordinates – Longitude, latitude, and altitude of detected drones (certain protocols)
• Pilot Location – Geolocates the drone operator’s position (certain protocols)
• Multiple Flight Trajectory Tracking – Simultaneously tracks multiple drone flight paths

Detection Performance

• Detection Frequency: 900 MHz, 1.2 GHz, 1.4 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
• 1–10 km Detection Range – Varies by environment and drone model
• ~15 Concurrent Drone Detection – Monitor multiple airborne targets simultaneously
• ~10 m Location Accuracy – Precise enough for threat assessment and response coordination

Networking & Neutralization Integration

• Multi-Device Networking – Connect multiple FD1 units to cover a larger area
• Independent Offline Operation – Works standalone without internet connectivity
• Neutralization Equipment Linkage – Interconnects with radio jammers, GNSS spoofers, and other counter-drone systems
• Whitelist / Blacklist – Classify authorized (“friend”) and unauthorized (“foe”) drones

Built for All-Weather Deployment

• IP65 Protection Grade – Dust-tight and water jet resistant for outdoor stationary installation
• -20°C to 65°C Operating Temperature – All-weather, all-season field deployment
• Full-Time, No Blind-Zone Protection – 24/7 continuous monitoring with complete coverage

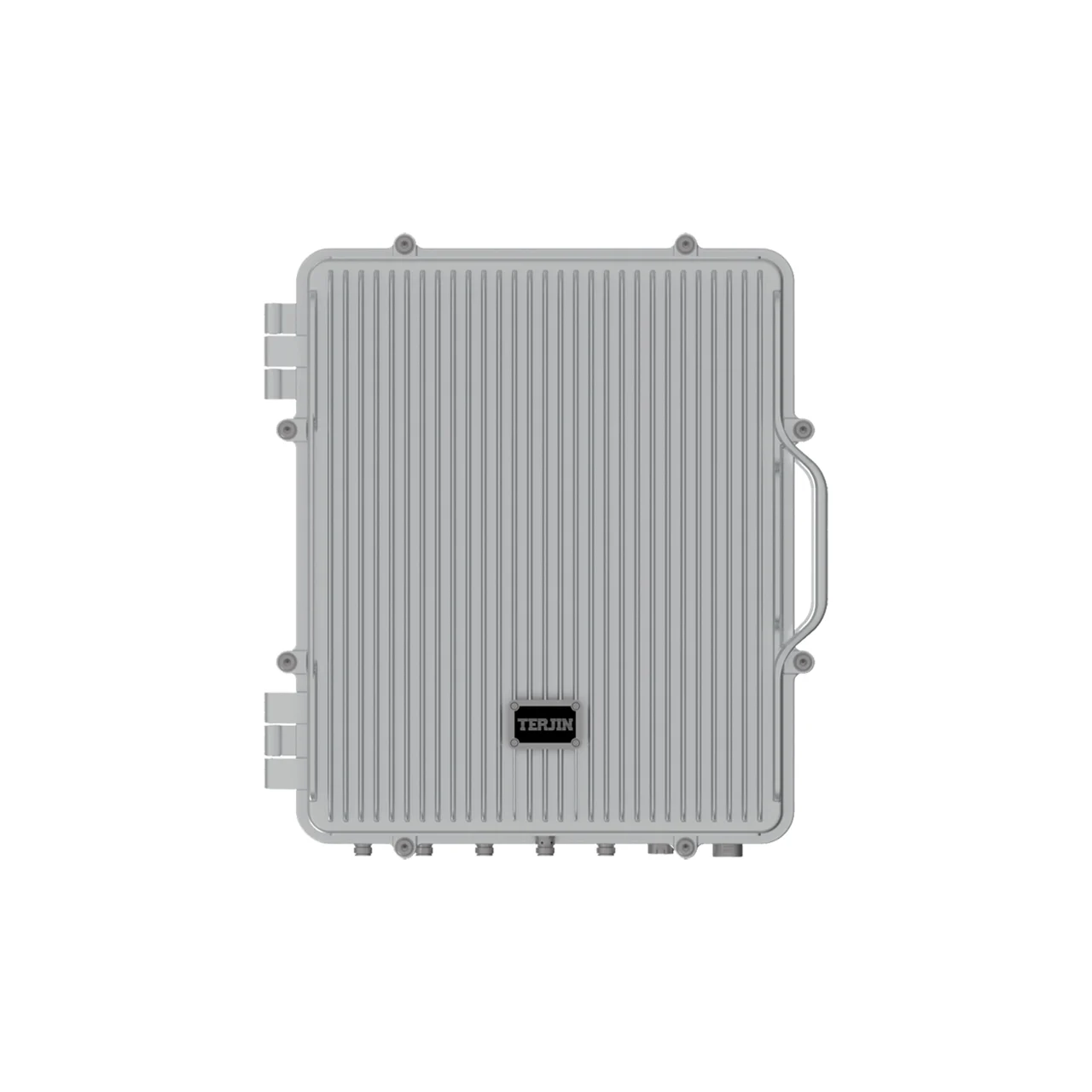

• Dimensions: 513 × 462 × 187 mm | Weight: ~25 kg

Application Scenarios

• Airport Security – Drone threat detection around airfields and flight paths
• Critical Industrial Facilities – Power plants, refineries, data centers
• Major Event Venues – Stadiums, conference centers, diplomatic events
• Government & Military Installations – Perimeter drone intrusion monitoring
• Urban Infrastructure – City-wide drone threat mitigation
