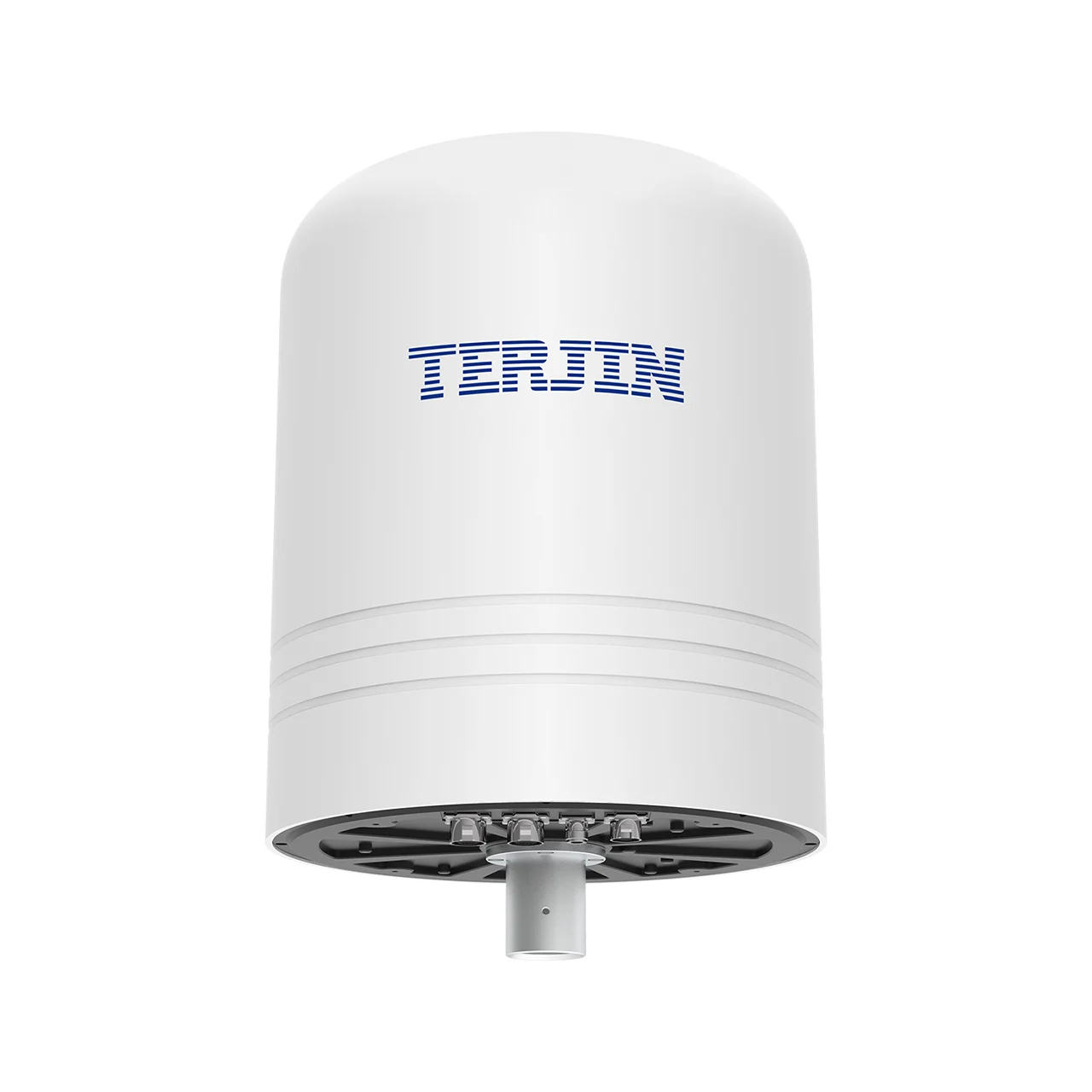

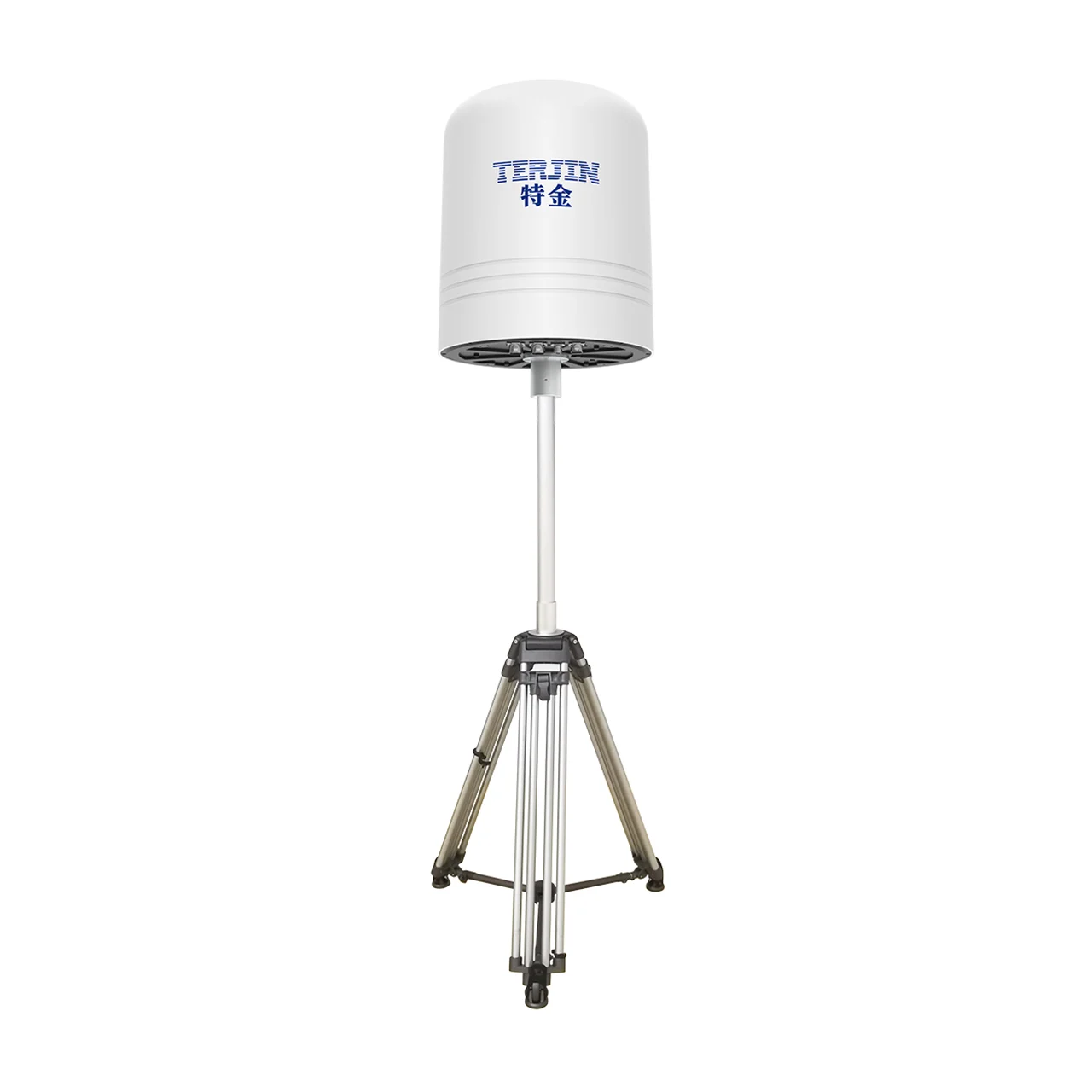

FTA1 TDOA+AOA Drone Detector

Description

FTA1 TDOA+AOA Drone Detector is a passive drone detection system with intrusion alarm, identification, direction-finding, and networking location capabilities. A single FTA1 detects and determines drone direction via AOA (Angle of Arrival), while multiple networked FTA1 units locate drones precisely via TDOA (Time Difference of Arrival) algorithm. Covering 100 MHz – 6 GHz with 2–5 km detection range, 3°–10° azimuth accuracy, IP65 protection, and -30°C to 65°C operation — the FTA1 emits no signal, making it interference-free and ideal for urban and sensitive environments.

Dual Detection Modes – TDOA + AOA

• Single Unit – Direction Finding (AOA) – One FTA1 independently detects drones and determines their direction with 3°–10° azimuth accuracy
• Multi-Unit – Location (TDOA) – Multiple networked FTA1 units precisely locate drones via Time Difference of Arrival algorithm
• Passive Operation – No signal emission, interference-free, suitable for urban and electromagnetically sensitive areas

Detection Performance

• 100 MHz – 6 GHz Frequency Coverage – Full spectrum monitoring of all commercial drone frequencies
• 2–5 km Detection Range – Long-range coverage varying by environment and drone model
• 2–4 km Direction-Finding Range – Accurate bearing information for single-unit operation
• 3°–10° Azimuth Error – Precise direction finding for rapid threat assessment
• Mainstream + FPV + DIY Drones – Identifies all major commercial and custom-built drone models

Intelligent Integration

• Spectrum Monitoring – Scans and analyzes signals within the full 100 MHz – 6 GHz range
• Jamming Interconnection – Links with radio jammers for automatic neutralization upon detection
• Scalable Networking – Add more FTA1 units to extend coverage area and improve positioning accuracy

Built for Extreme Field Deployment

• IP65 Protection Grade – Dust-tight and water jet resistant for permanent outdoor installation
• -30°C to 65°C Operating Temperature – Extended temperature range for arctic-to-desert environments
• Compact Design: Φ420 × H530 mm | Weight: ~15 kg

Application Scenarios

• Critical Facility Protection – Power plants, government buildings, military installations
• Industrial Compounds – Oil refineries, chemical plants, manufacturing complexes
• Airport Security – Airfield perimeter drone threat monitoring with direction finding
• Urban Security – City-wide passive drone detection without electromagnetic interference
