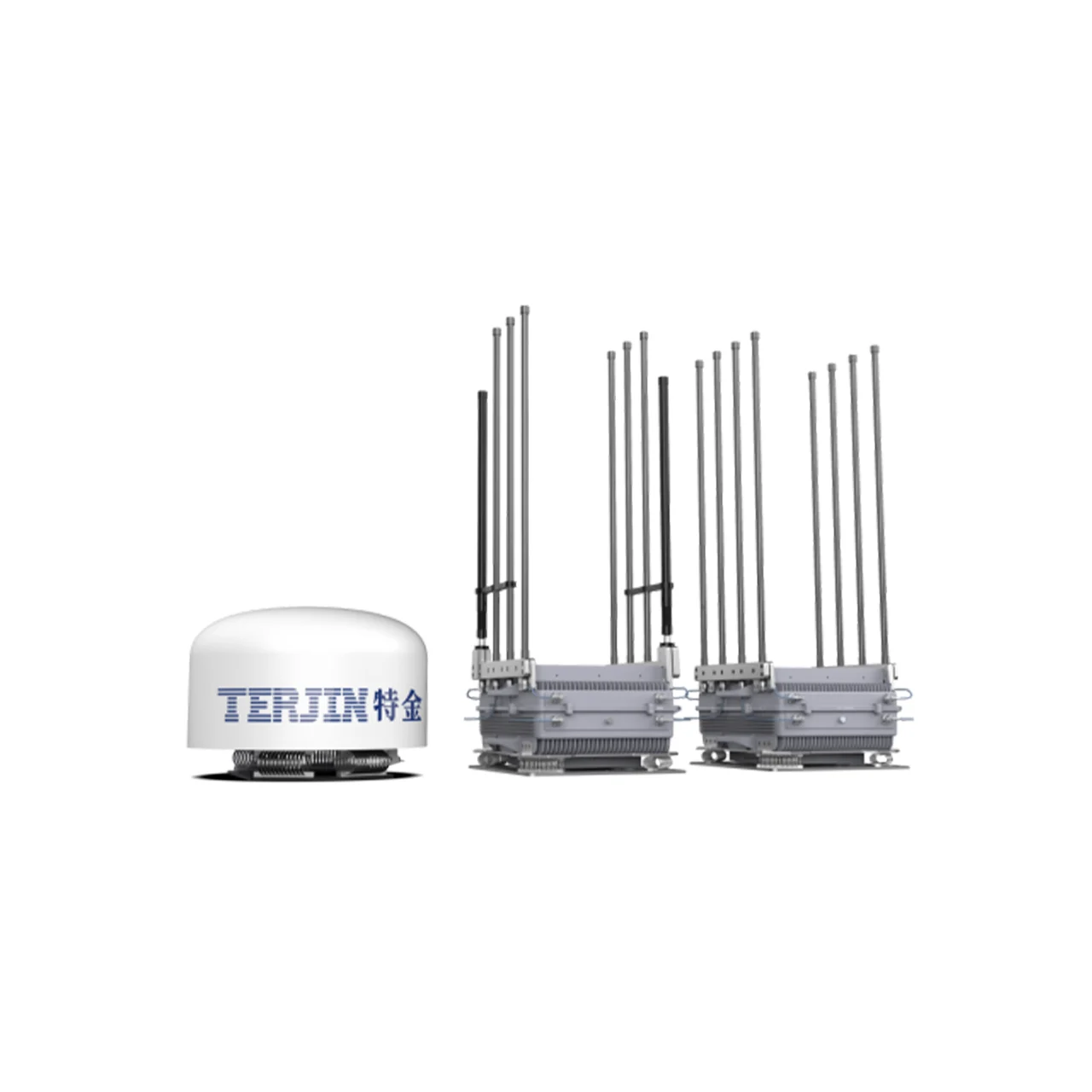

VDC2 Pro Detection Jamming Integrated

Description

VDC2 Pro is an integrated drone detection and jamming system combining passive RF detection (100 MHz – 6 GHz, 1–5 km range) with 12-frequency-band coordinated radio jamming (0.5–3 km range) in a single deployable unit. The VDC2 Pro identifies illegal drones, tracks their locations with ~10 m accuracy, geolocates the drone controller, and automatically counters threats — including commercial drones, DJI, Autel, homemade, FPV, and WiFi drones. Supports flexible vehicle-mounted or stationary deployment for complex environments.

Detection Capabilities

• Passive RF Detection – No signal emission for covert, interference-free operation
• 100 MHz – 6 GHz Frequency Coverage – Full-spectrum drone signal detection
• 1–5 km Detection Range – Long-range monitoring varying by environment and drone model
• ~10 m Location Accuracy – Precise drone and pilot positioning
• ~3 Second Location Refresh – Near real-time tracking of drone movements
• Multi-Model Detection – DJI, Autel, homemade, FPV, WiFi drones
• Drone S/N Identification – Serial number extraction for forensic tracking (certain protocols)
• Pilot Location – Geolocate the drone controller operator (certain protocols)

12-Band Coordinated Jamming

• Radio Jamming Mode – Targets drone control and/or navigation signals
• 0.5–3 km Jamming Range – Effective neutralization varying by environment and drone model
• 14 Jamming Frequencies: 180 MHz, 265 MHz, 515 MHz, 600 MHz, 715 MHz, 900 MHz, 1 GHz, 1.2 GHz, 1.4 GHz, 1.5 GHz, 1.8 GHz, 2.4 GHz, 5.2 GHz, 5.8 GHz
• FPV Counter Capability – Strengthened low-frequency detection and jamming against non-standard drones including FPV

Automatic Detection-to-Jamming Linkage

The VDC2 Pro automatically links detection results to jamming actions — when an unauthorized drone is detected and classified, the system can initiate coordinated multi-band jamming without manual intervention, minimizing response time from detection to neutralization.

Intelligent Threat Classification

• Whitelist / Blacklist – Classify authorized (“friend”) and unauthorized (“foe”) drones (certain protocols)
• Drone ID – Serial number identification for threat documentation and forensics
• Drone + Pilot Location – Simultaneous tracking of both drone position and operator position

Flexible Deployment

• Vehicle-Mounted – Mobile deployment for patrol, convoy protection, and rapid response
• Stationary – Fixed installation for permanent perimeter and facility protection

Application Scenarios

• Airport & Airfield Protection – Comprehensive detection-to-jamming drone defense
• Critical Infrastructure – Power plants, oil refineries, government facilities
• VIP & Event Security – Mobile or fixed drone threat mitigation at high-profile events
• Military & Border Security – Rapid deployment counter-UAS capability
• Convoy & Mobile Protection – Vehicle-mounted operation for moving convoys and patrols
